HFX 1000-Coming Soon!

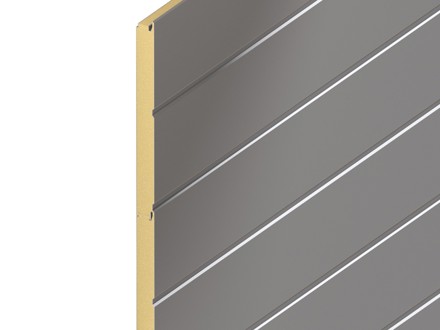

3D Indicative render showing HFX 1000 -One Rib

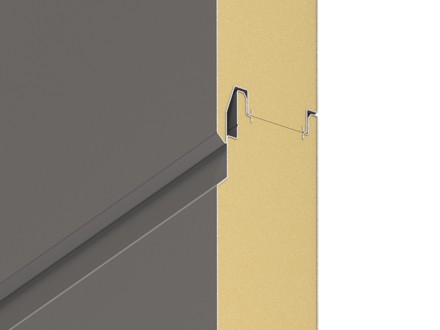

3D Indicative render of HFX1000 -One Rib Hidden fix joint

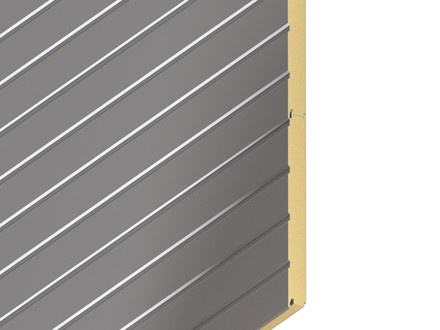

3D Indicative render showing HFX1000 -Three Rib

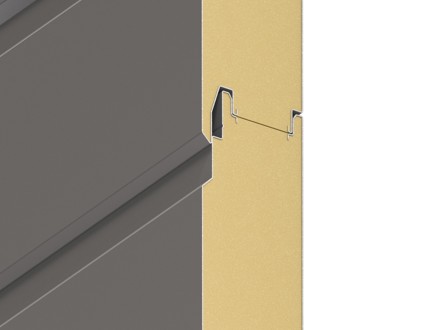

3D Indicative render showing HFX1000 -Three Rib Hidden fix joint

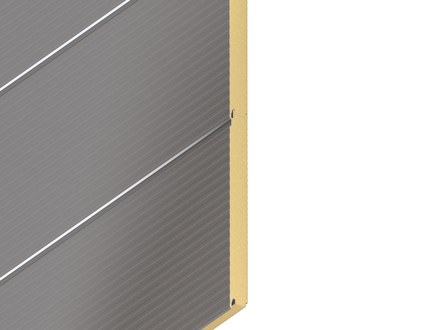

3D Indicative render showing HFX1000 -Satinline

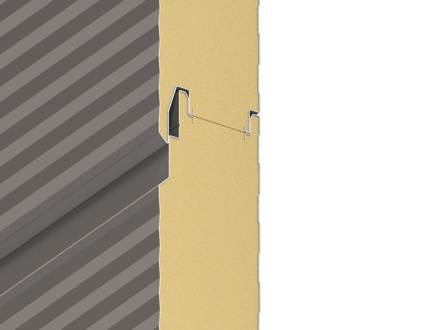

3D Indicative render of HFX1000 -Satinline Hidden fix joint

3D Indicative render showing HFX1000 -Fineline

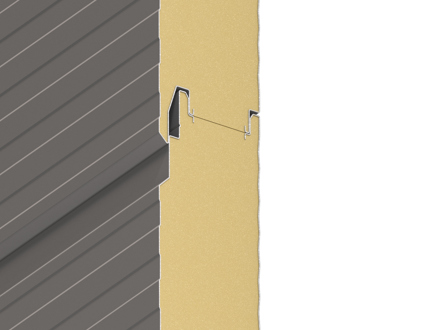

3D Indicative render of HFX1000 -Fineline Hidden fix joint

PIR CORE. CURRENTLY NOT FOR SALE! PLEASE SUBSCRIBE TO STAY UPDATED.

Finishes Tech Spec Colours

Product Information

HFX 1000 is a premium insulated architectural wall panel, designed for commercial and industrial applications. It features a secret-fix interlocking joint for a clean, seamless look, along with a high-performance PIR core for superior thermal insulation.

EXTERNAL STEEL LINER:

0.59mm COLORSTEEL® MAXAM® G300 AM150.

INTERNAL STEEL LINER:

0.59mm COLORSTEEL® CP Grade Prepainted Galvanised Steel G300 Z275, or 0.55mm COLORSTEEL® MAXAM® G300 AM150.

COVER WIDTH:

1000mm

PANEL THICKNESS OPTIONS:

Once manufacturing commences, the following panel thicknesses will be available: 50mm, 75mm, 100mm, 125mm

CORE TYPE:

PIR

PANEL LENGTH:

Up to 24m lengths will be available depending on freight to site.

MANUFACTURING LOCATION:

Hamilton, available nationwide.

ORIENTATION:

Vertical wall cladding and horizontal wall cladding.

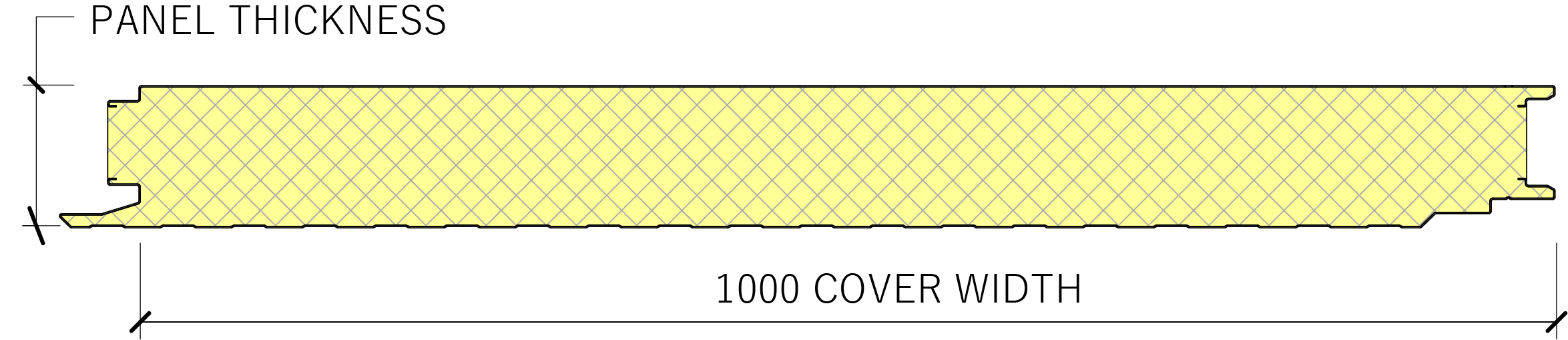

Cross Sectional Line Drawing

Colour Swatches & Colour Guidelines

COLOUR SWATCHES:

Please note that colour samples displayed online or in brochures are indicative only and may not accurately represent the final product. For the most reliable colour selection, we strongly recommend requesting an official COLORSTEEL® swatch from your nearest Metecno branch before making your final decision.

THERMAL EXPANSION AND DARK COLOURS:

When selecting colours, clients and designers should be aware that darker shades absorb and retain more heat than lighter colours. This can lead to increased thermal expansion, which is a normal and expected characteristic of metal roofing and cladding. As a result, you may occasionally hear popping, creaking, or banging noises, particularly during temperature fluctuations. These natural movements are accounted for in the NZMRM Code of Practice and are referenced in the MBIE Guide to Tolerances, Materials and Workmanship in New Residential Construction (2015).

What is PIR

PIR (Polyisocyanurate) is a high-performance rigid foam insulation commonly used as the core material in insulated panels for commercial, industrial, and cold storage buildings. Renowned for its excellent thermal insulation and fire resistance, PIR is a thermoset plastic. Its closed-cell structure offers low thermal conductivity, making it highly effective at reducing heat transfer, improving energy efficiency and reducing annual electrical consumption in coolrooms & freezers.

Internal Liner - Finish Options

HFX 1000 is available in the following three finishes. Dimensions are all nominal and may vary with manufacturing and installation tolerances.

FLAT
Dimensions are indicative.
SATINLINE
Dimensions are indicative.
FINELINE
Dimensions are indicative.

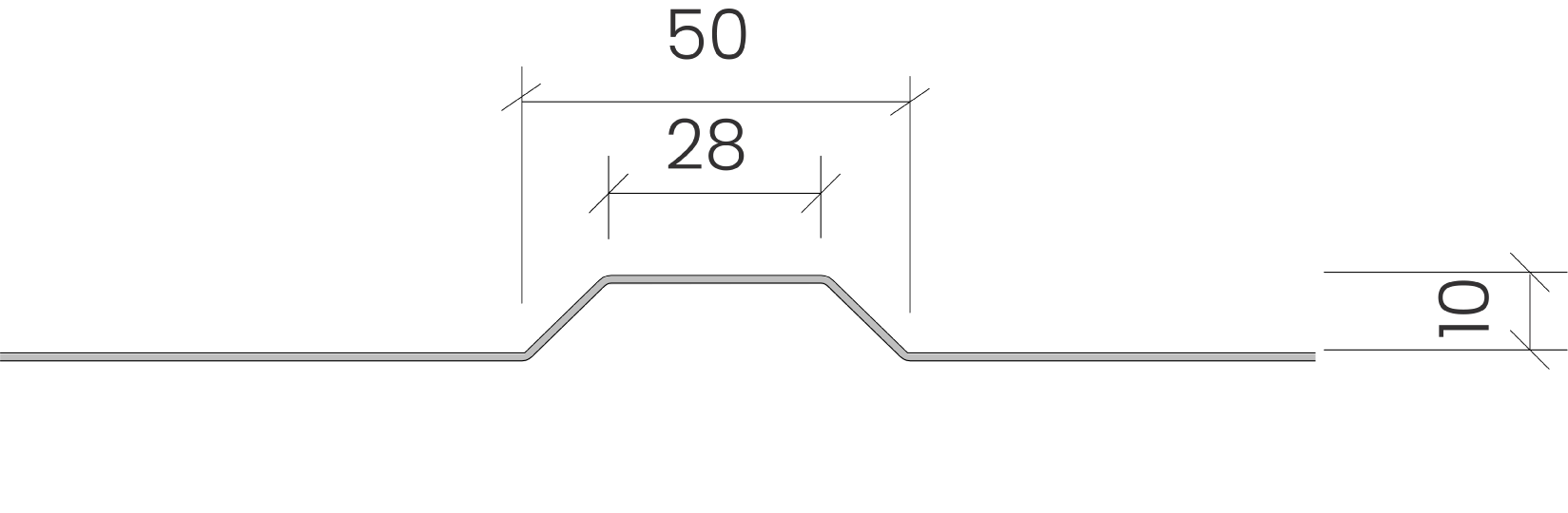

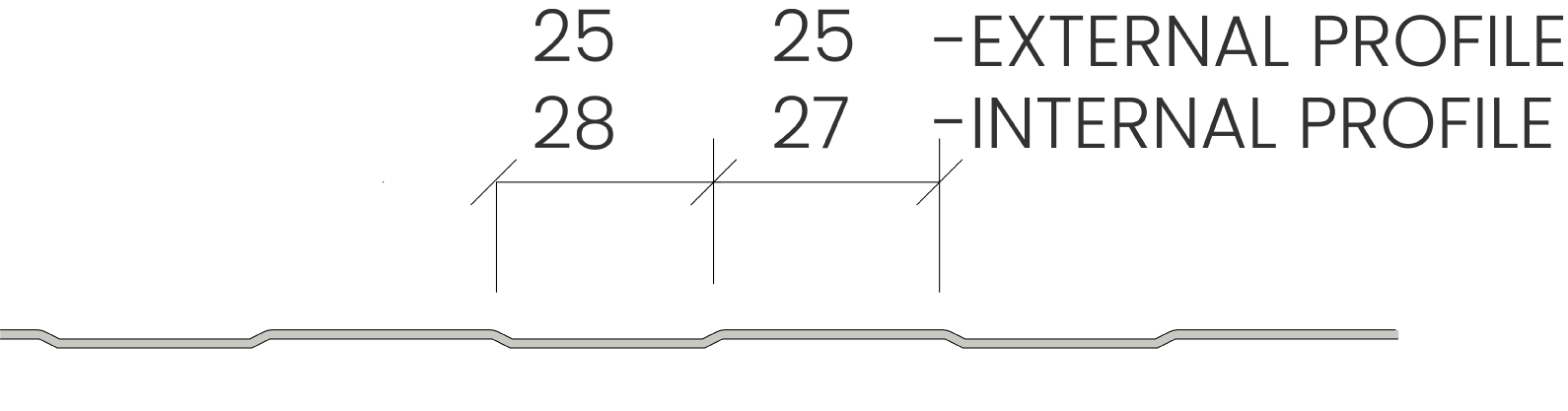

RIB
One rib or three rib options available. Dimensions may vary.

Technical Downloads

Product Compliance Literature Coming Soon!

HFX 1000-Coming Soon!

Company Profile

View Download

COLORSTEEL® Colours

Metecno offers a wide range of COLORSTEEL® MAXAM® colours to suit your design and performance needs. The standard colour is Titania, applied to both sides of the panel for a clean, neutral look. Colours shown online or in brochures are indicative only. Always request an official colour swatch from your nearest Metecno branch for accurate selection. For more information, refer to Colour Swatches and Colour Guidelines.

*Ebony is for interior use only, as its dark tone can cause heat build-up and potential steel delamination.

TuiTuft

TSR 66% LRV 68%
Cloud

(Low Gloss)

TSR 69%
LRV 74%
Titania

(Standard)

TSR 67%
LRV 69%
Sandscape

TSR 66% LRV 66%
Gull Grey

TSR 57% LRV 51%
StonePeak®

(Matte)

TSR 53% LRV 48%
Sandstone Grey

TSR 41% LRV 27%
Sandstone Grey

(Low Gloss)

TSR 42% LRV 27%
Tidaldrift

(Matte)

TSR 29% LRV 13%
Sandbar

TSR 48% LRV 34%
Lichen

TSR 42% LRV 28%
Mist Green

TSR 39% LRV 25%
Permanent Green

TSR 25% LRV 10%
Pioneer Red

(Low gloss)

TSR 35% LRV 12%
Scoria

TSR 30% LRV 10%
Ironsand

TSR 25% LRV 8%
Ironsand

(Low Gloss)

TSR 25% LRV 8%
Karaka

TSR 24% LRV 8%
New Denim Blue

TSR 24% LRV 11%
Grey Friars

TSR 26% LRV 10%
Thunder Grey

TSR 29% LRV 12%
Windsor Grey

(Low Gloss)

TSR 20% LRV 7%
Slate

TSR 25% LRV 9%
FlaxPod®

TSR 21% LRV 7%
Flaxpod®

(Matte)

TSR 20% LRV 6%
*Ebony

TSR 5% LRV 5%
*Ebony

(Low Gloss)

TSR 5% LRV 5%
