TH 1100 -Coming Soon!

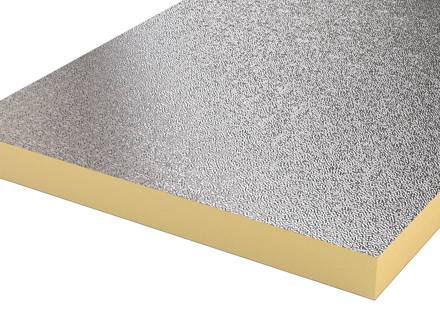

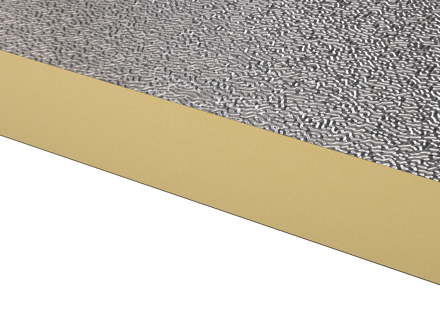

TH 1100 board is manufactured with a PIR CORE.

BOARD DIMENSIONS:

2400mm *Long  x 1100mm wide   *Length can be up to 6000mm depending requirement and handling capability.

BOARD THICKNESS OPTIONS:

 50, 75, 100, 125, 150 & 200mm.

FACING OPTIONS:

• Aluminium Foil
• Embossed
• Foil + three-way fibre glass scrim
• Kraft Paper
• Fibre glass tissue/cloth
• Bare/Naked board (i.e. no facing)

PIR insulation boards can be used in a wide range of areas within commercial buildings, these include:

• INTERNAL PARTITION WALLS
• CEILING AND SOFFIT INSULATION
• BUILT-UP WARM ROOFS
• WARM WALL CLADDING SYSTEMS

PIR (Polyisocyanurate) is a high-performance rigid foam insulation commonly used as the core material in insulated panels for commercial, industrial, and cold storage buildings. Renowned for its excellent thermal insulation and fire resistance, PIR is a thermoset plastic. Its closed-cell structure offers low thermal conductivity, making it highly effective at reducing heat transfer and improving energy efficiency.

BENEFITS OF PIR INSULATION BOARD:

PIR insulation boards offer great thermal performance which contribute to the buildings energy efficiency.

PIR boards are effective for ceilings and soffits—such as basements and car parks—where they help reduce heat transfer to occupied areas above. In HVAC and plant rooms, PIR minimises heat loss from ductwork and equipment.

PIR insulation boards offers a versatile, durable solution that enhances building performance across multiple applications.
