CR 1100-Coming Soon!

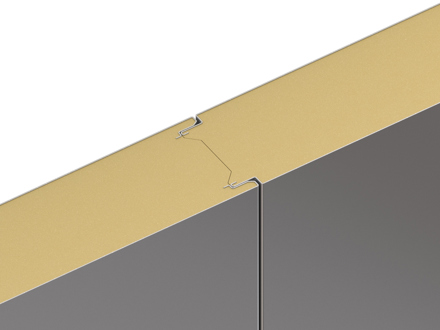

Metecno’s CR 1100 Insulated Panels will incorporate a PIR core.

COVER WIDTH:

1100mm

PANEL THICKNESS OPTIONS:

Once manufacturing commences, the following panel thicknesses will be available: 50mm, 75mm, 100mm, 125mm, 150mm, 200mm

CORE TYPE:

PIR

PANEL LENGTH:

Up to 24m lengths will be available depending on freight to site.

EXTERNAL AND INTERNAL FINISH OPTIONS:

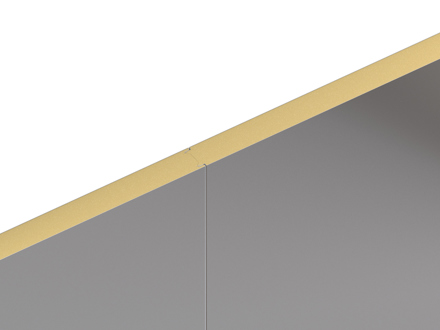

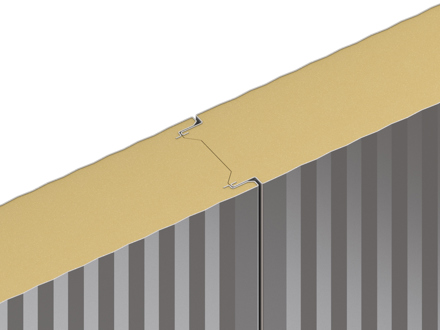

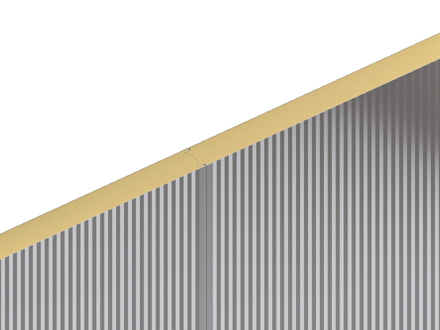

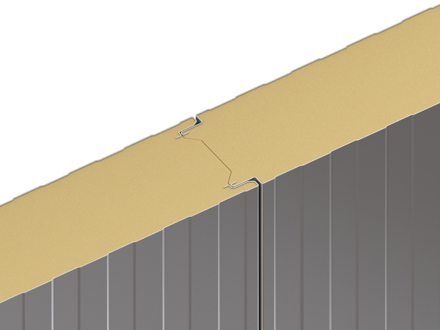

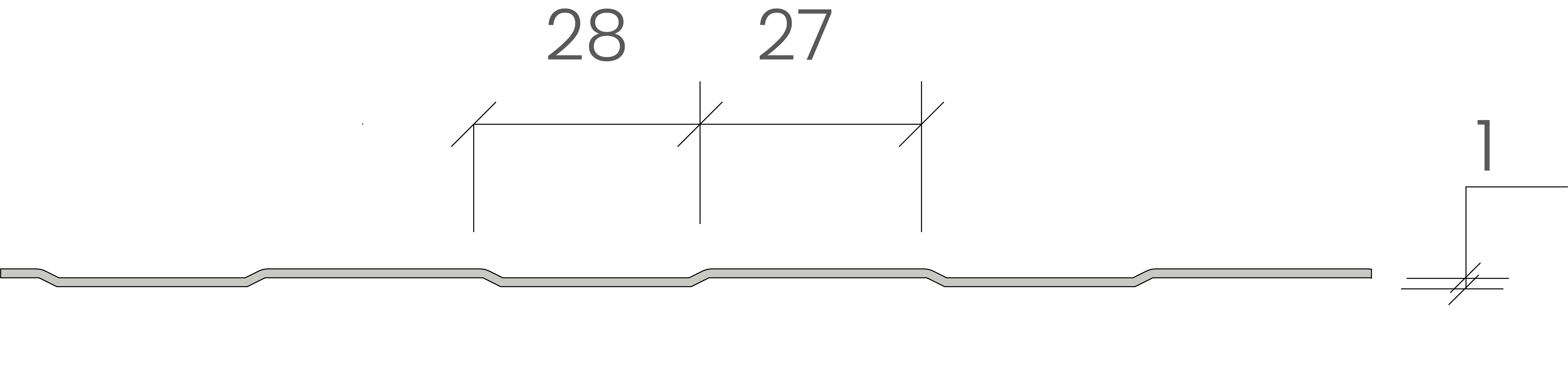

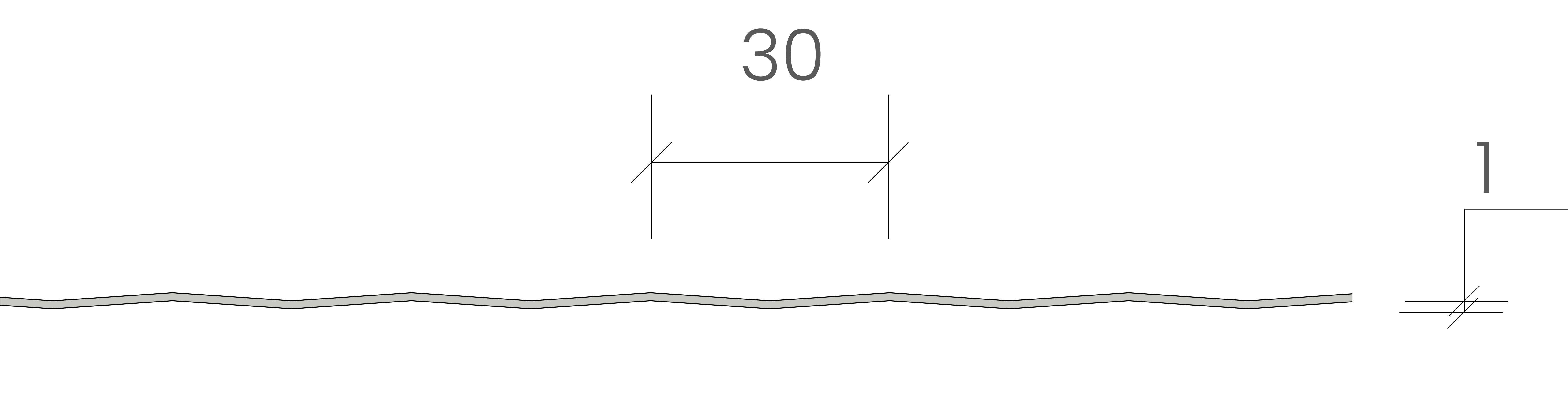

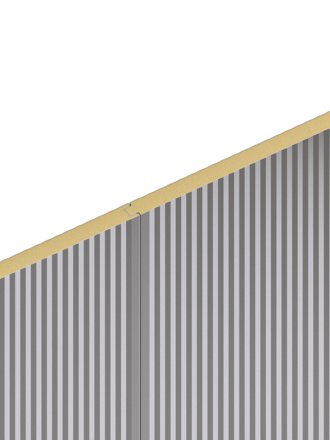

Flat, Satinline and Fineline finish.

EXTERNAL STEEL LINER:

0.55mm COLORSTEEL® CP Grade Prepainted Galvanised Steel G300 Z275, or 0.55mm COLORSTEEL® MAXAM® G300 AM150.

INTERNAL STEEL LINER:

0.55mm COLORSTEEL® CP Grade Prepainted Galvanised Steel G300 Z275, or 0.55mm COLORSTEEL® MAXAM®  G300 AM150.

MANUFACTURING LOCATION:

Hamilton, available nationwide.

ORIENTATION:

Vertical wall cladding and horizontal wall cladding.

MAIN APPLICATIONS:

Coolrooms, Chillers, Freezers, Hygiene, Processing, Health, Laboratory and Animal Enclosures.

COLOUR SWATCHES:

 Please note that colour samples displayed online or in brochures are indicative only and may not accurately represent the final product. For the most reliable colour selection, we strongly recommend requesting an official COLORSTEEL® swatch from your nearest Metecno branch before making your final decision.

THERMAL EXPANSION AND DARK COLOURS:

When selecting colours, clients and designers should be aware that darker shades absorb and retain more heat than lighter colours. This can lead to increased thermal expansion, which is a normal and expected characteristic of metal roofing and cladding. As a result, you may occasionally hear popping, creaking, or banging noises, particularly during temperature fluctuations. These natural movements are accounted for in the NZMRM Code of Practice and are referenced in the MBIE Guide to Tolerances, Materials and Workmanship in New Residential Construction (2015).

PIR (Polyisocyanurate) is a high-performance rigid foam insulation commonly used as the core material in insulated panels for commercial, industrial, and cold storage buildings. Renowned for its excellent thermal insulation and fire resistance, PIR is a thermoset plastic. Its closed-cell structure offers low thermal conductivity, making it highly effective at reducing heat transfer, improving energy efficiency and reducing annual electrical consumption in coolrooms & freezers.
